Welcome

To our Innovative Reelstand page

Weston™ Reelstands

Weston Handling can design and supply bespoke Unwind Reelstand's to meet demanding workloads and conservative budgets. Our unrivalled expertise, learnt from over 40yrs of working in papermills and packaging plants around the world, has produced uniquely practical and productive unwind stand solutions.

The Patented, Moving Sideframe, Shaftless Reelstand

In 2000, Stephen Weston patented the "Moving Side-frame Shaftless Reelstand", as the "Weston Reelstand", a low cost, multi featured Reelstand for unwinding large reels, that could be scaled up to handle multi-tonne paper mill reels. Cleverly designed not to require traditional welded fabrication, it could be assembled 'Flat-Pack' style in hours, rather than weeks, using only four 'Allan Keys' wrenches.

In order to obtain startup investment, he built a prototype at home in his garage, powering lift and clamping from compressed air. From that he found investor funding to develop the Reelstand, eventually selling it to a leading Converting machine manufacturer, which developed Stephen's idea into a commercial model. Customers included, Avery Dennison, Dupont Films, Whiteley's Paper, and highly confidential clients, configured as single unwind stands and as multiple back to back unwind stands.

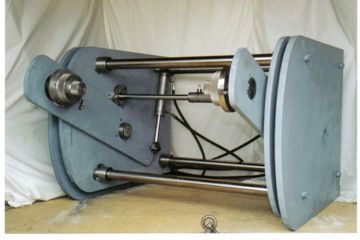

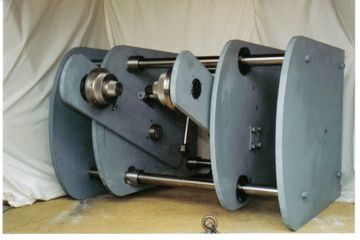

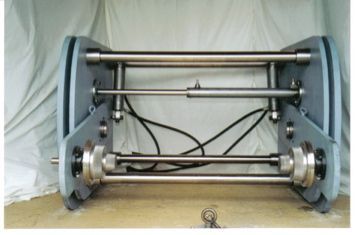

Prototype Shaftless Reelstand
Button
Button
1st Moving Sideframe, Shaftless Reelstand, with lift from floor and wide ranging Reel Width capability.
Button
Shaftless Reelstand
Button
Weston Shaftless Unwind

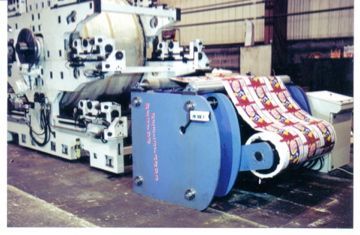

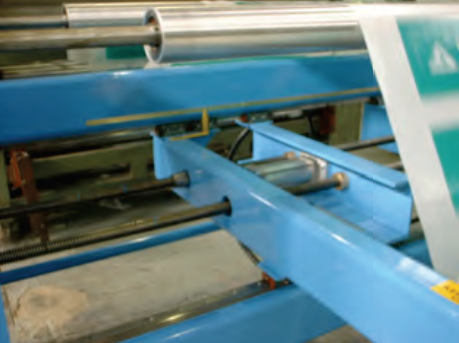

First production Moving Sideframe Shaftless Reelstand
Button
Weston Shaftless Unwind

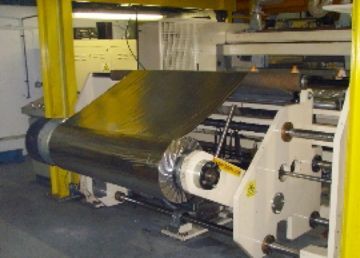

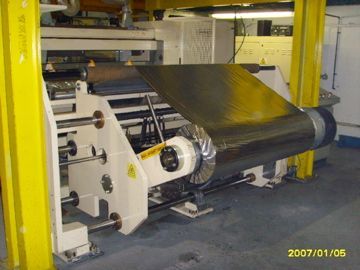

First commercial model of the Moving Sideframe, Shaftless Reelstand at Dupont Liquid Box, Romiley, UK.
Button
First commercial model of the Moving Sideframe, Shaftless Reelstand at Dupont Liquid Box, Romiley, UK.
Button
Button
Button
Button
Button
Button
Portable, 4-Reel Unwind Stand

Portable, 4-Reel Cantilevered Unwind Stand, with Load Cell weighing of each reel to measure material usage.
Button
Button
Button
Portable, 4-Reel Cantilevered Unwind Stand

Portable, 4-Reel Cantilevered Unwind Stand, with angled guide rails at base to guide Weston AF, (Angled Fork) Truck to center the reel with the cantilevered shaft.
Button
Button
Button
Button
Button
Button

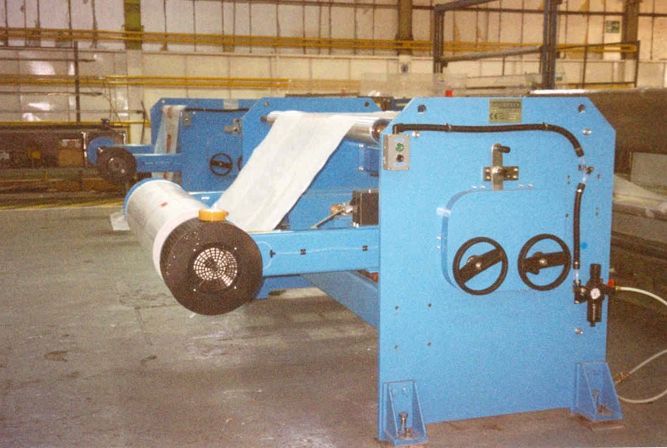

Weston™ Workhorse Reelstand

One of a pair of low-cost fixed height shuttleless Reel stands for bpi, with manual side light adjustment pneumatic breaking, pneumatic tension control & Reel Widths from 500mm - 2500mm.
Button
Button

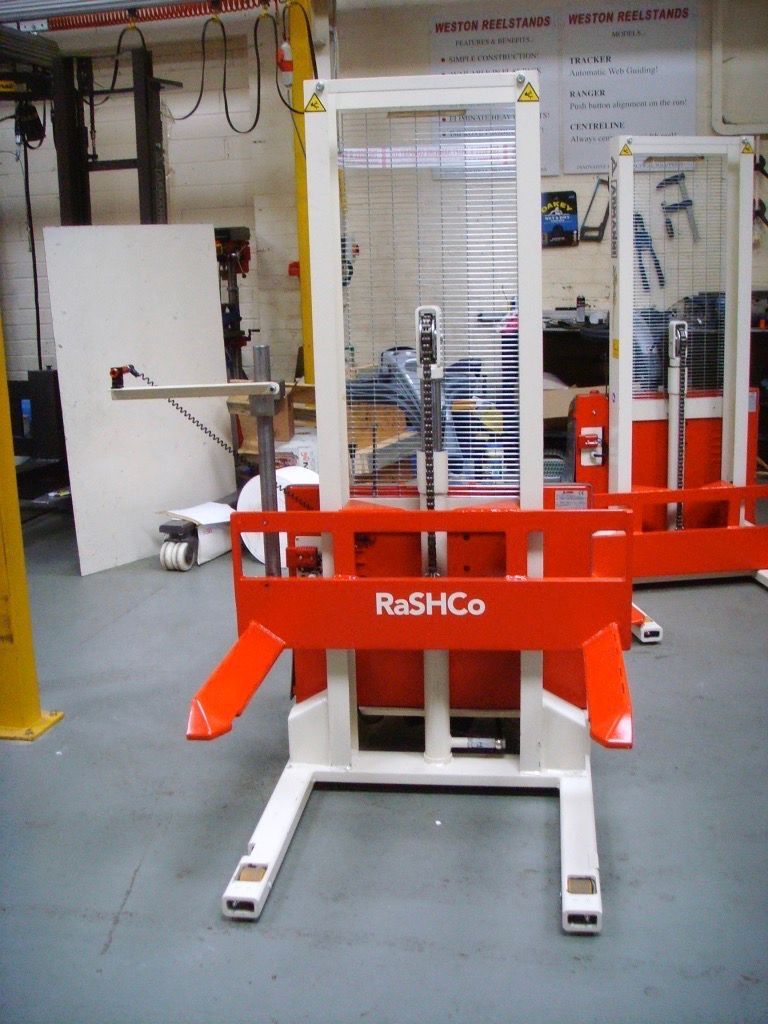

Weston AF/1000 Angled Fork Reel Truck
